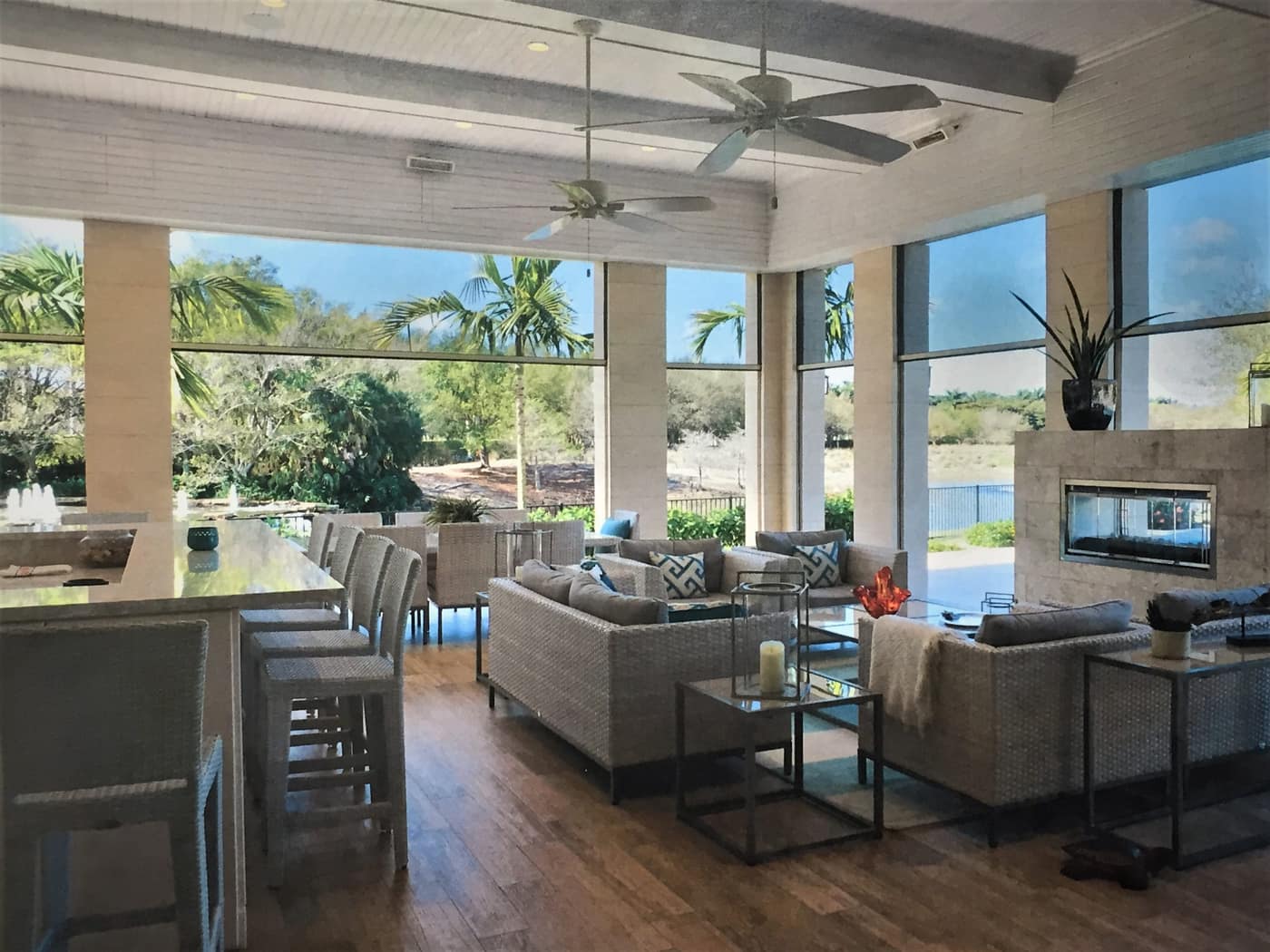

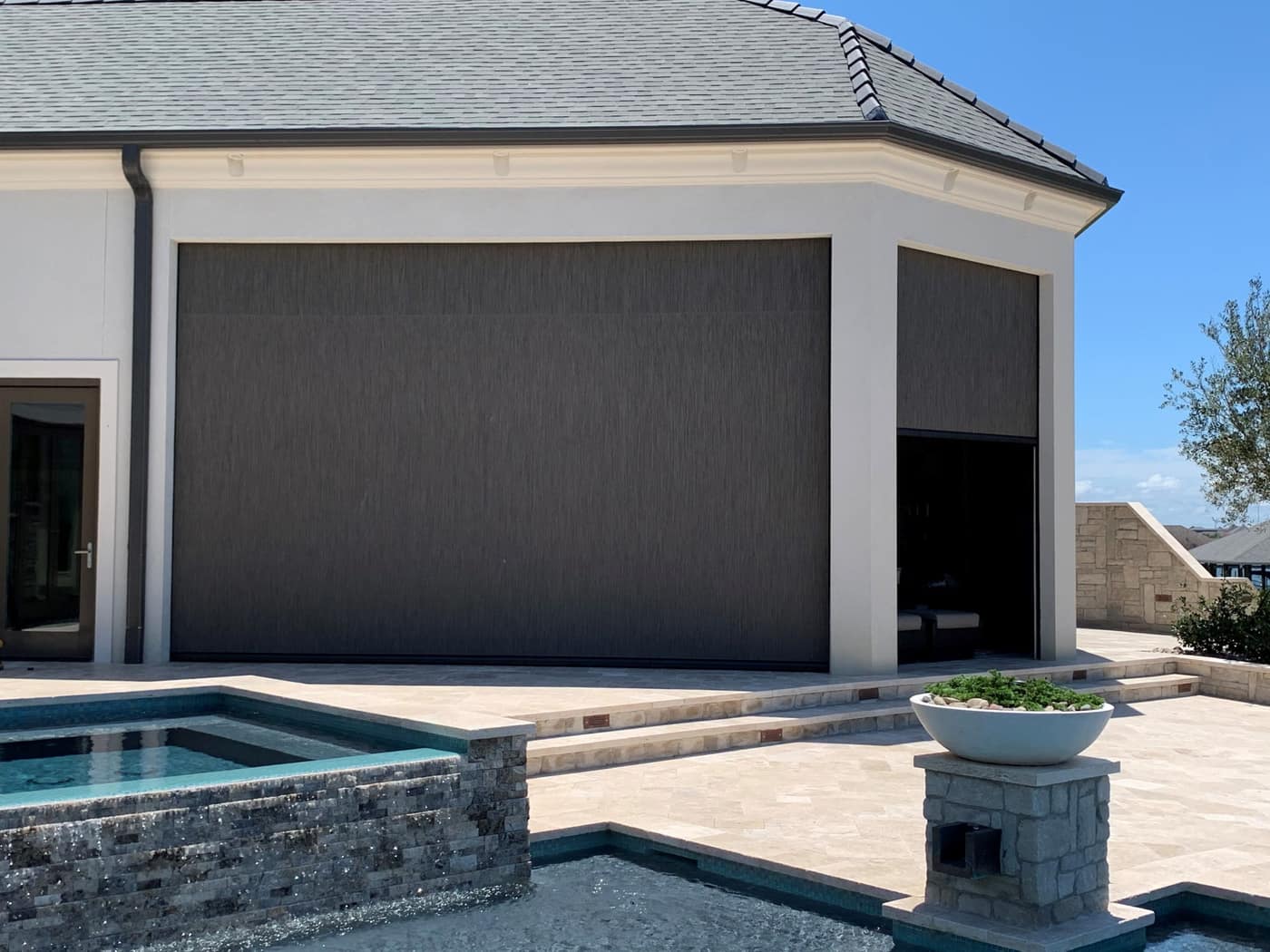

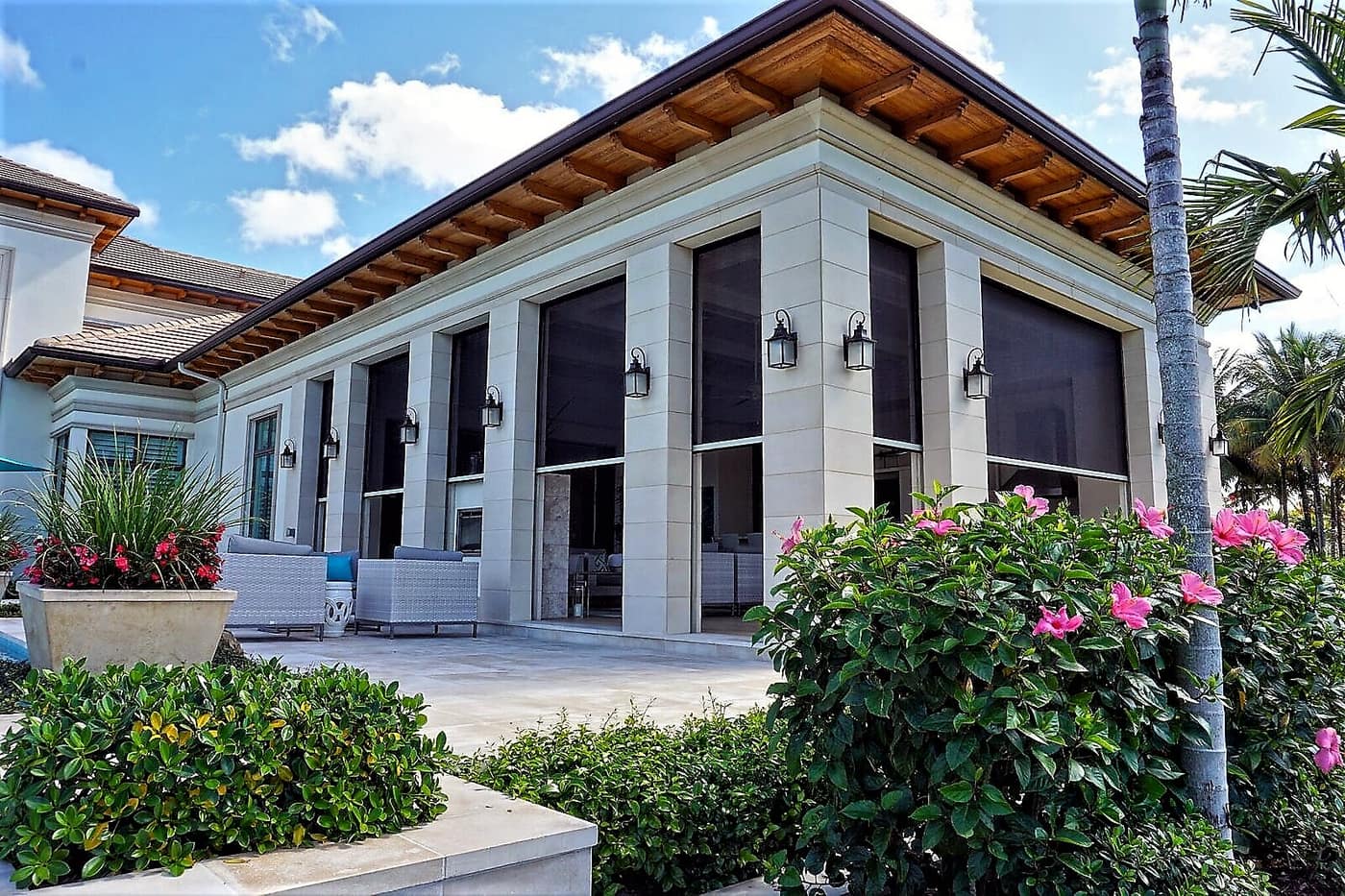

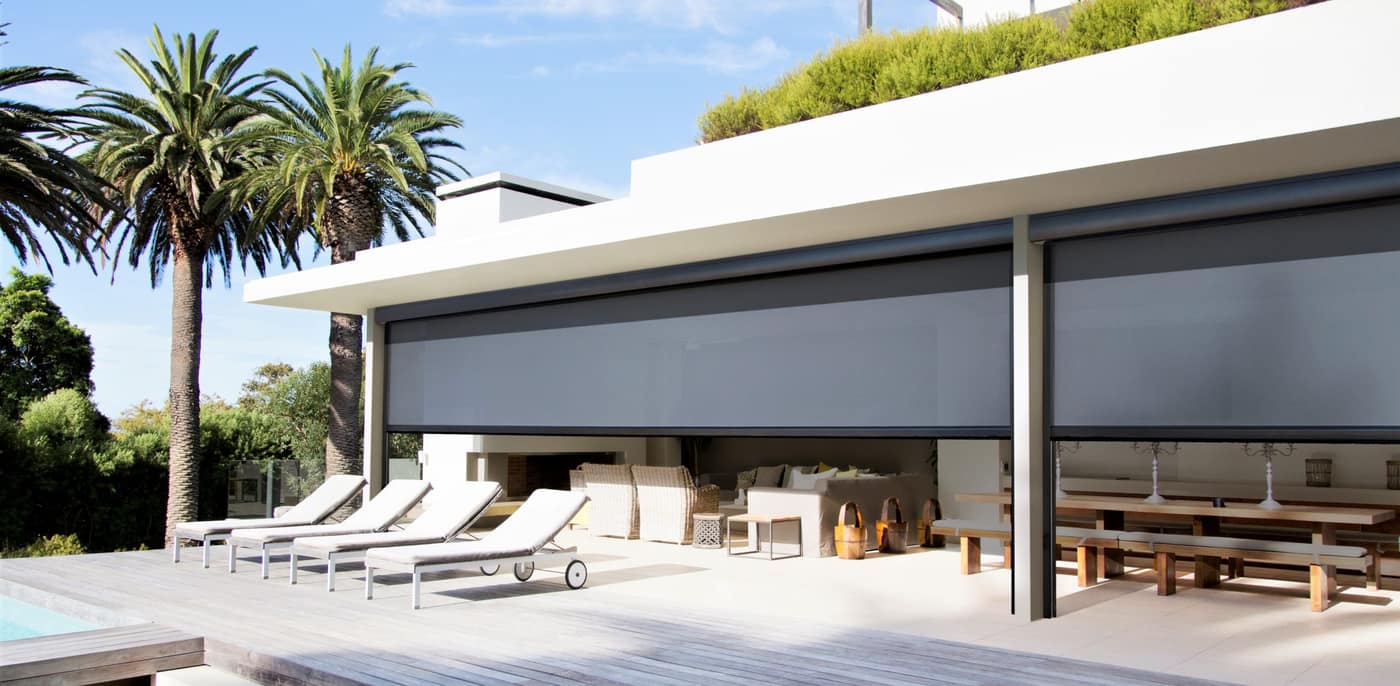

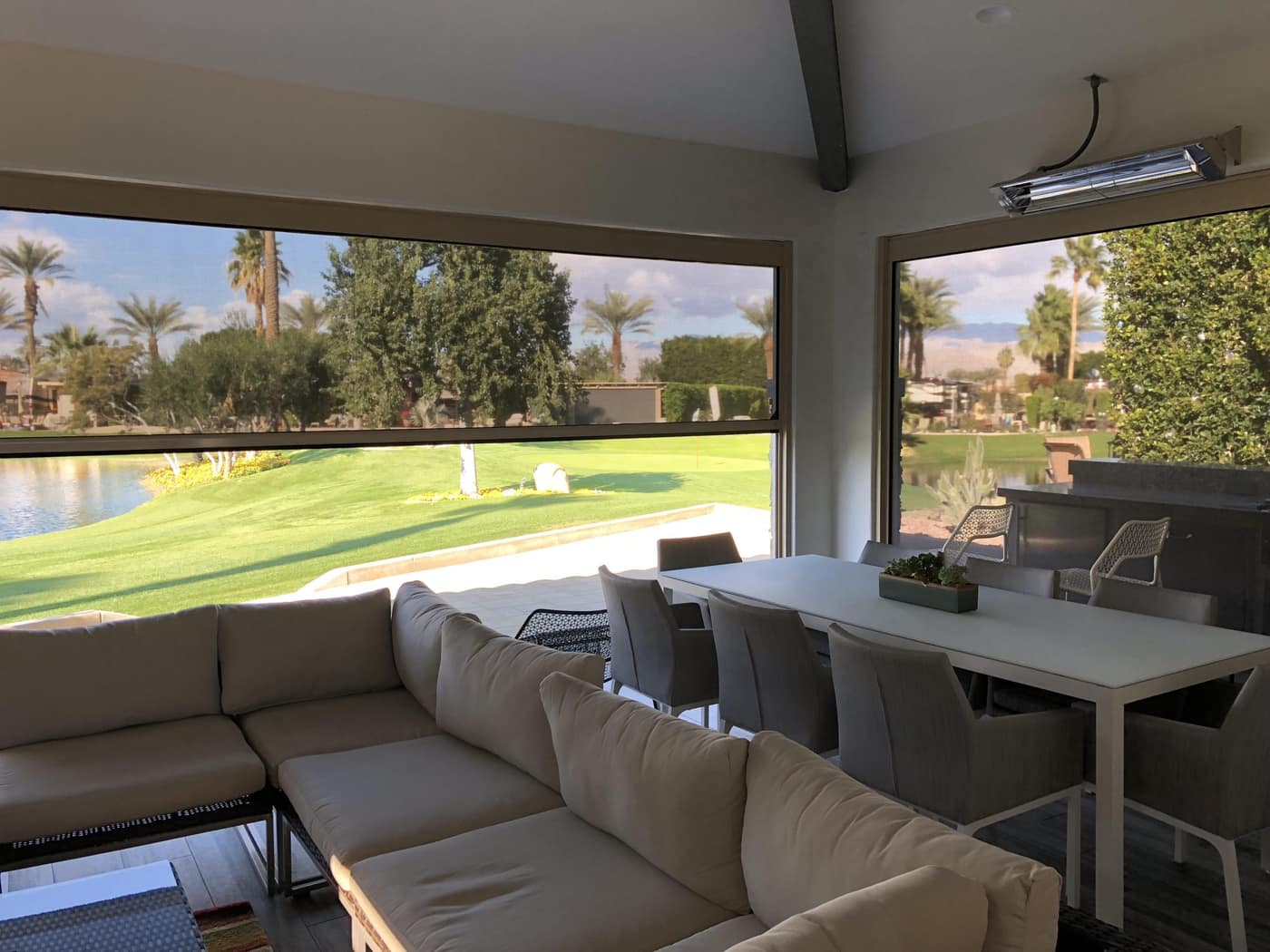

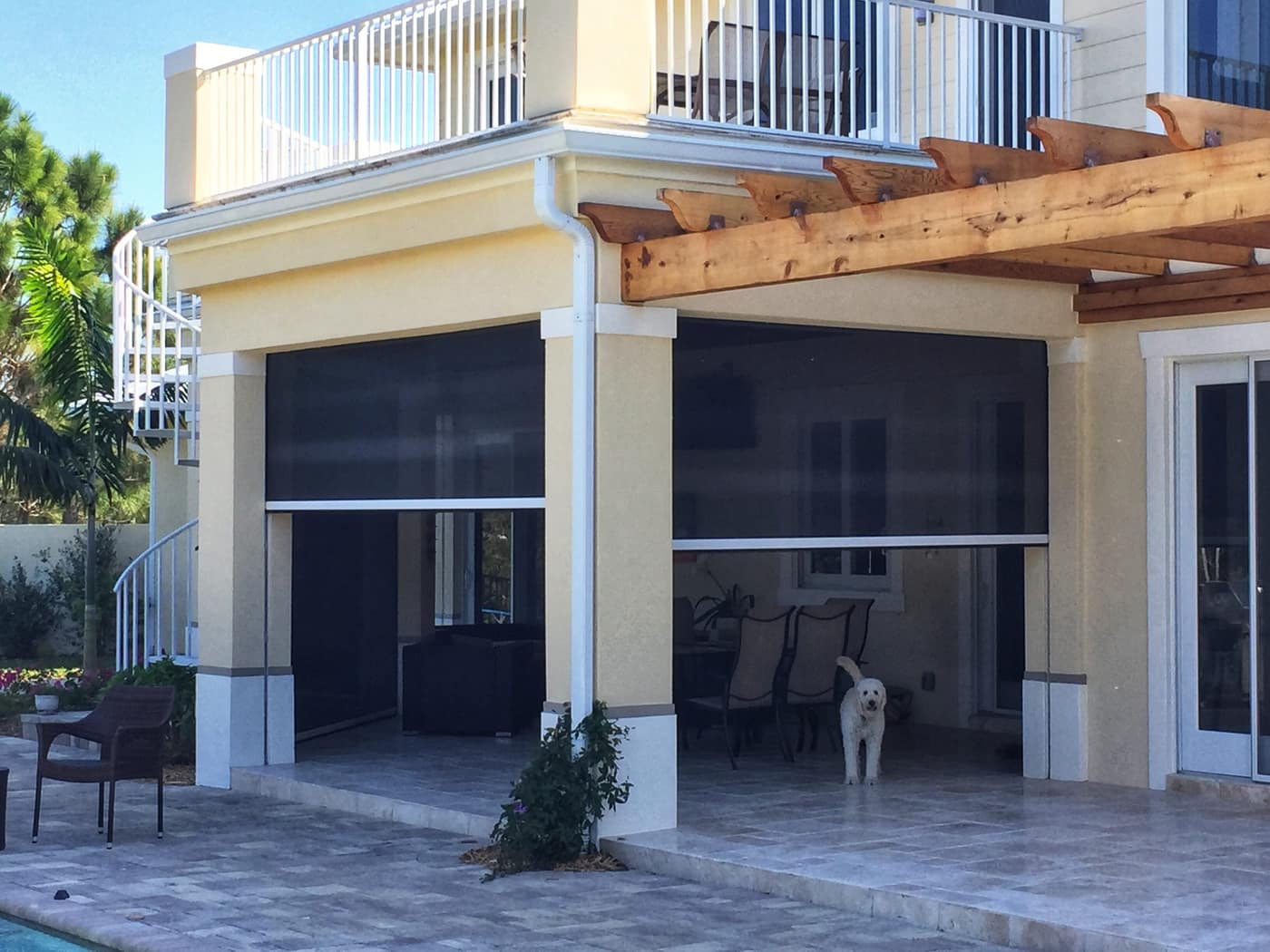

MagnaTrack manufacturer example photo
MagnaTrack example

Solar Screens

GEN 4 motorized — block UV and heat, keep the view

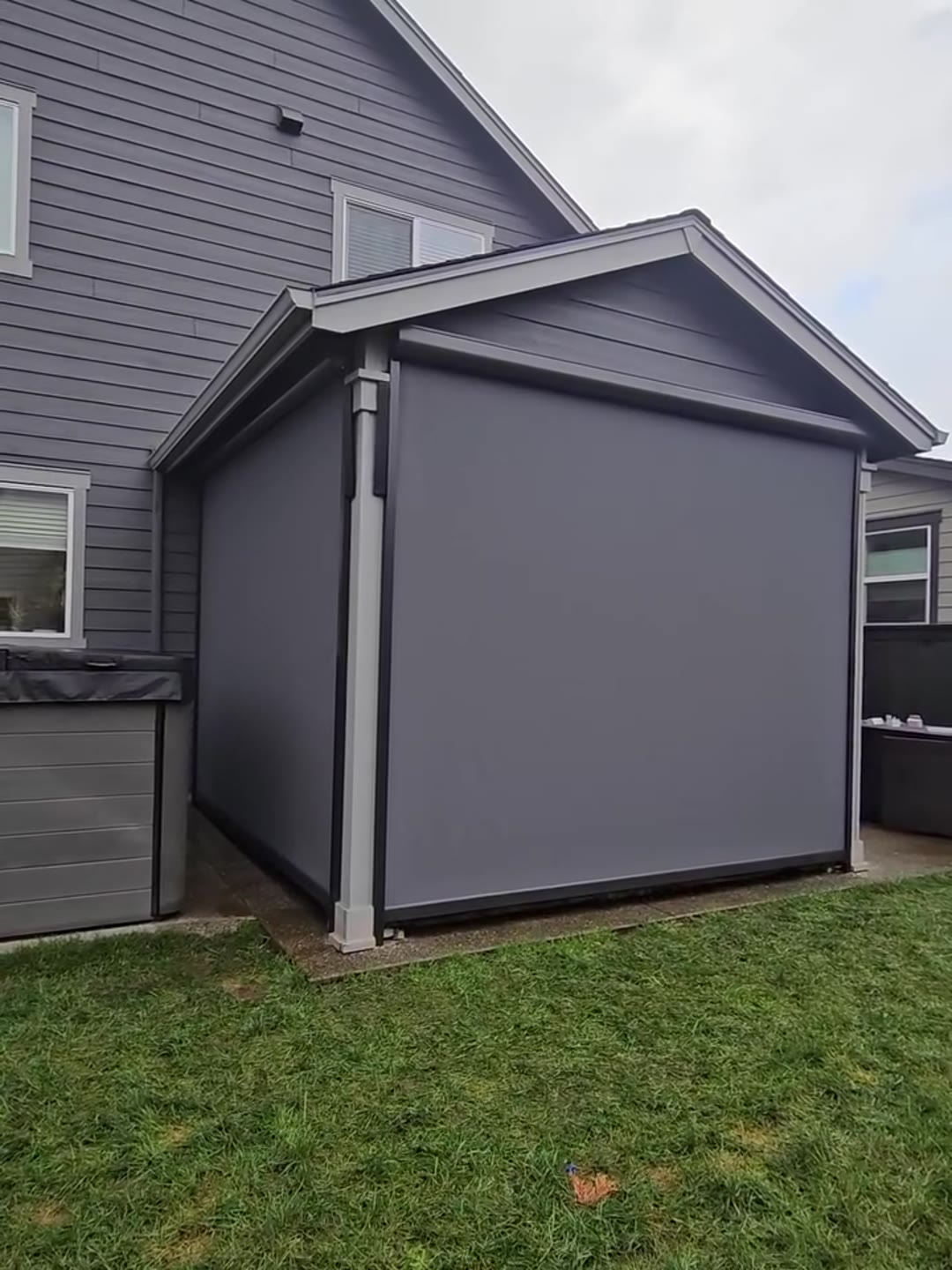

Solar Screens: Felts Customs installation
Felts Customs install
Enlarge

Photos and video labeled “MagnaTrack example” are manufacturer examples, not Felts Customs installations.

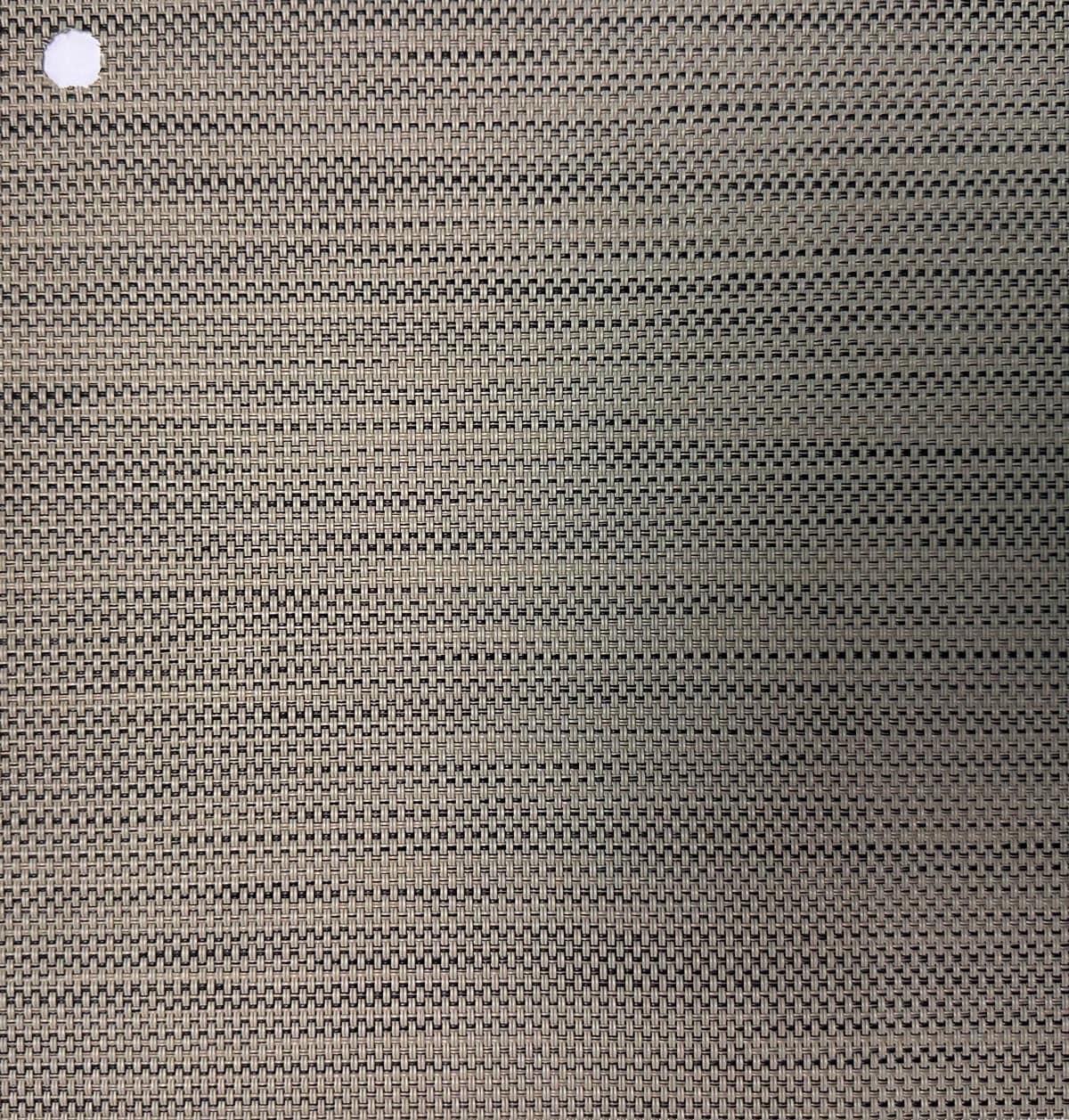

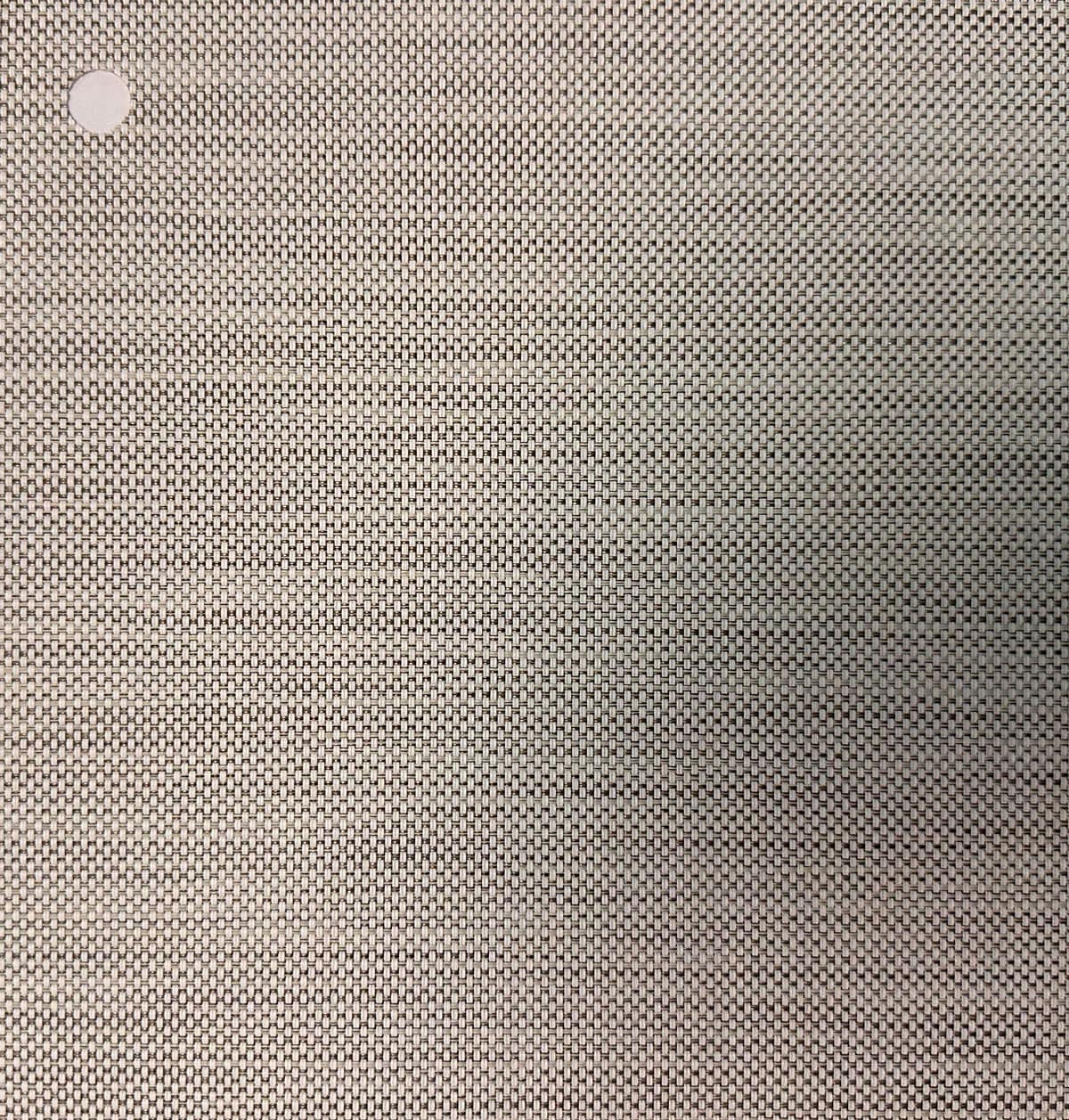

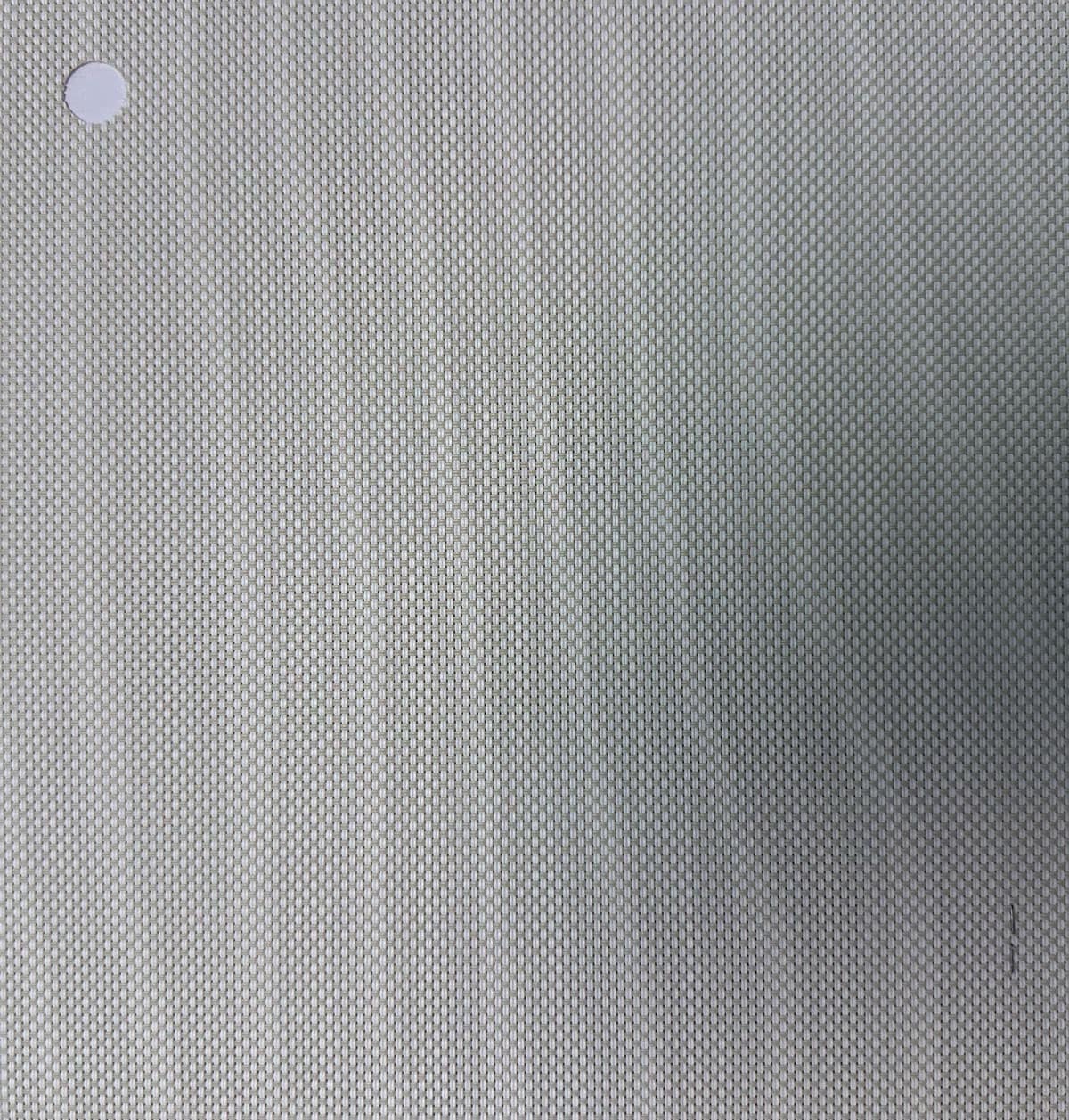

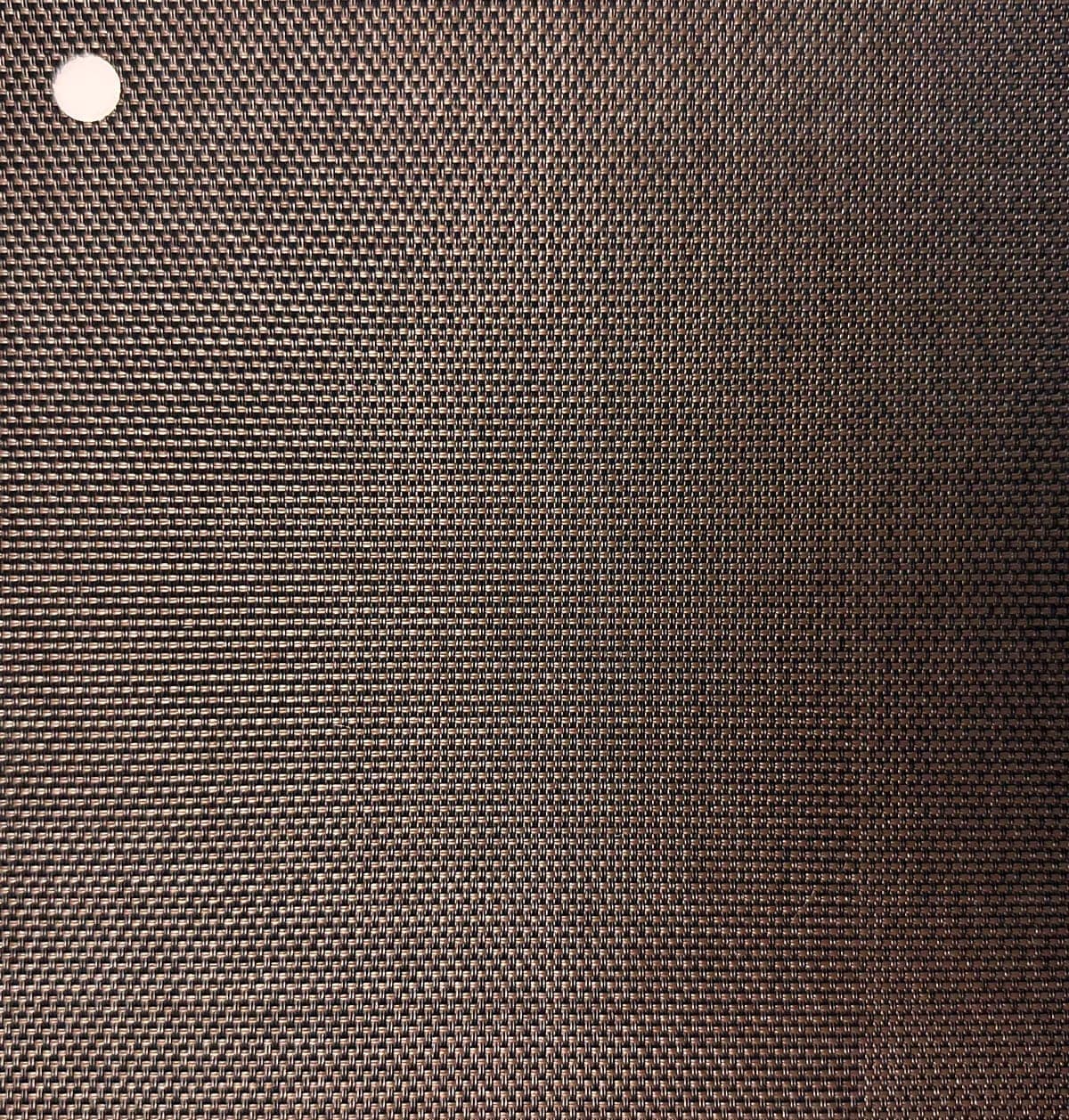

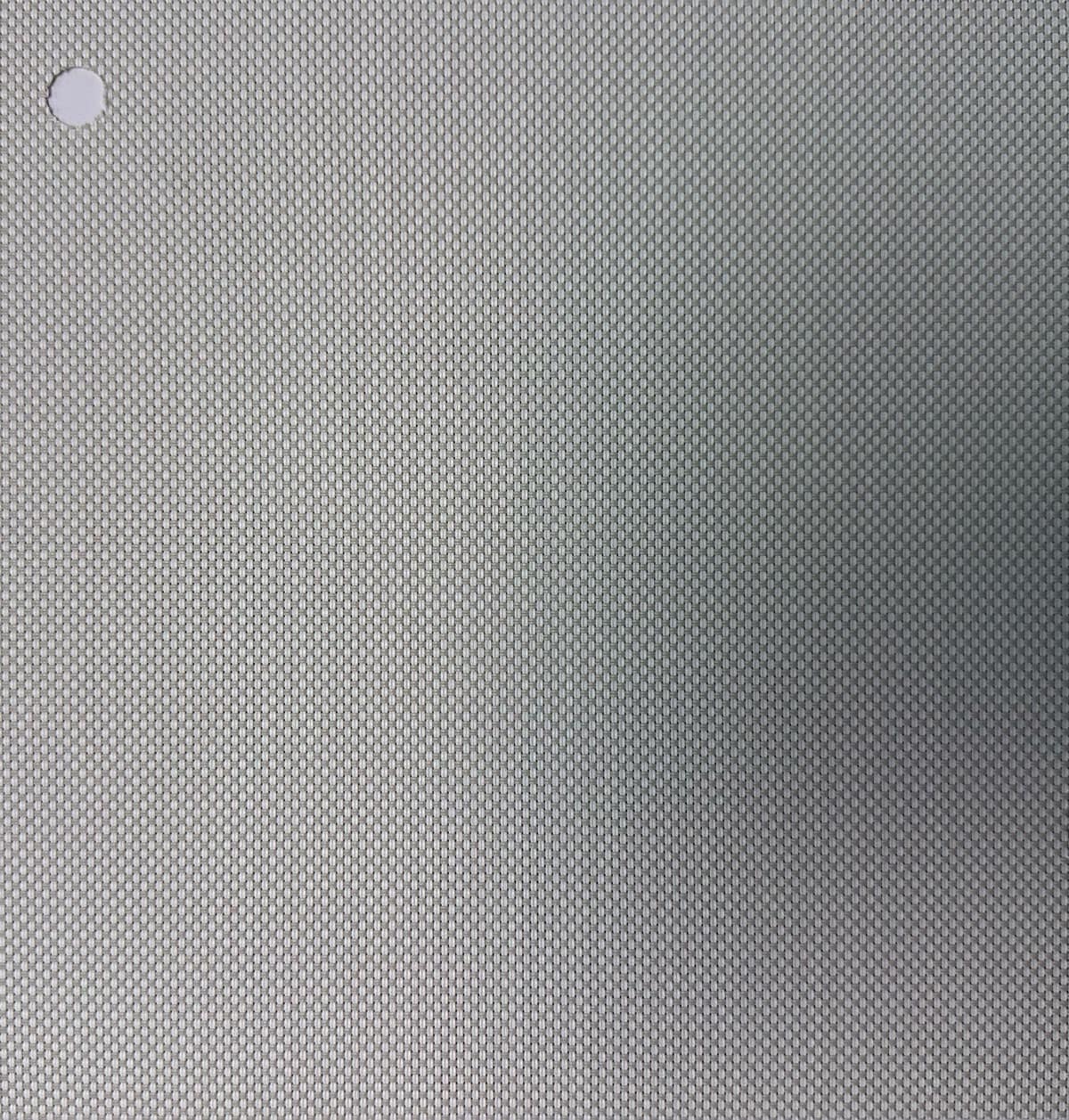

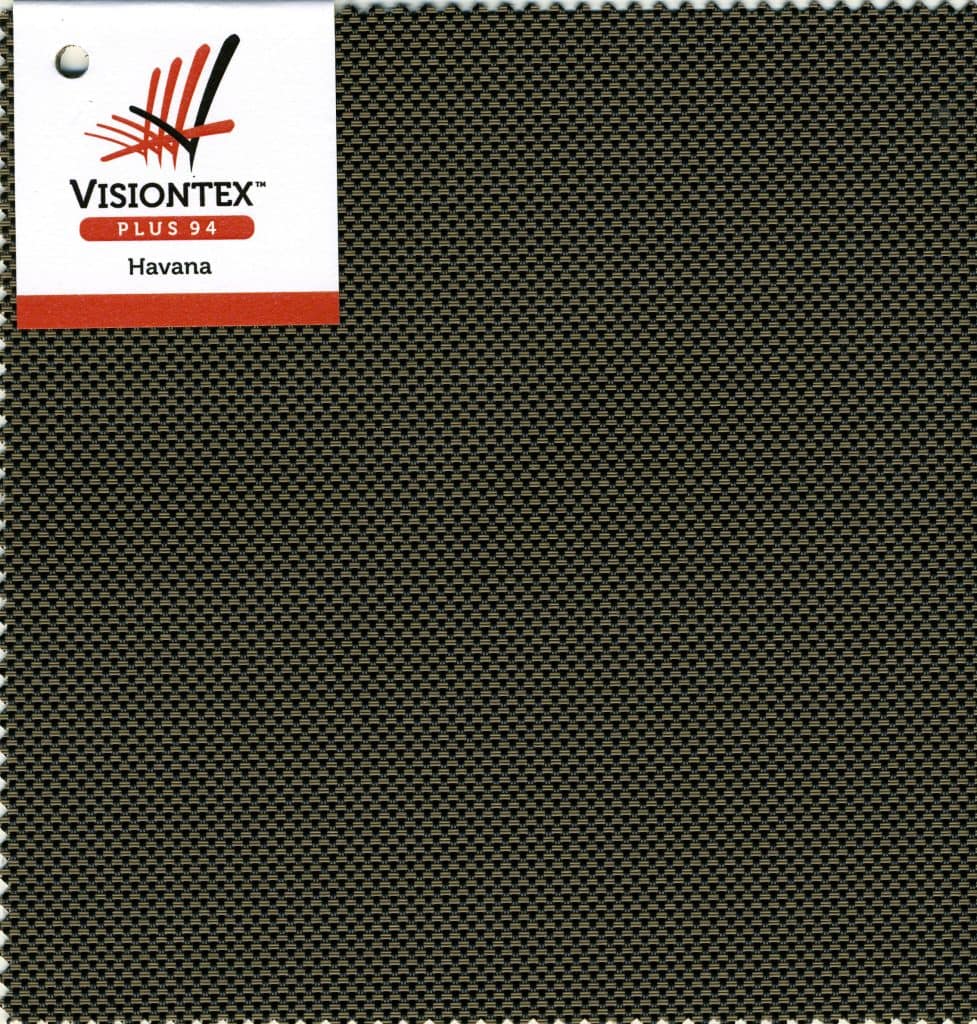

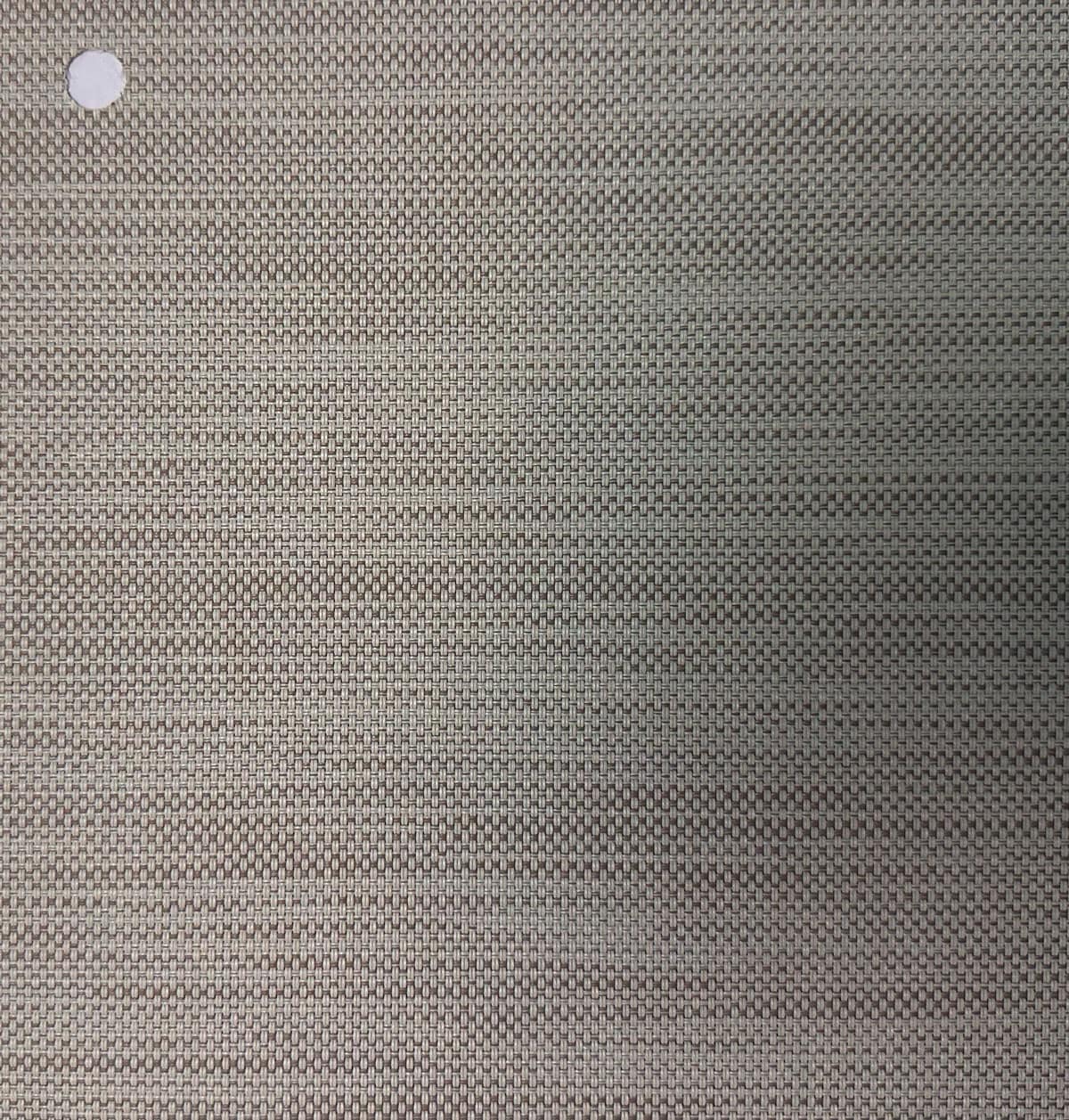

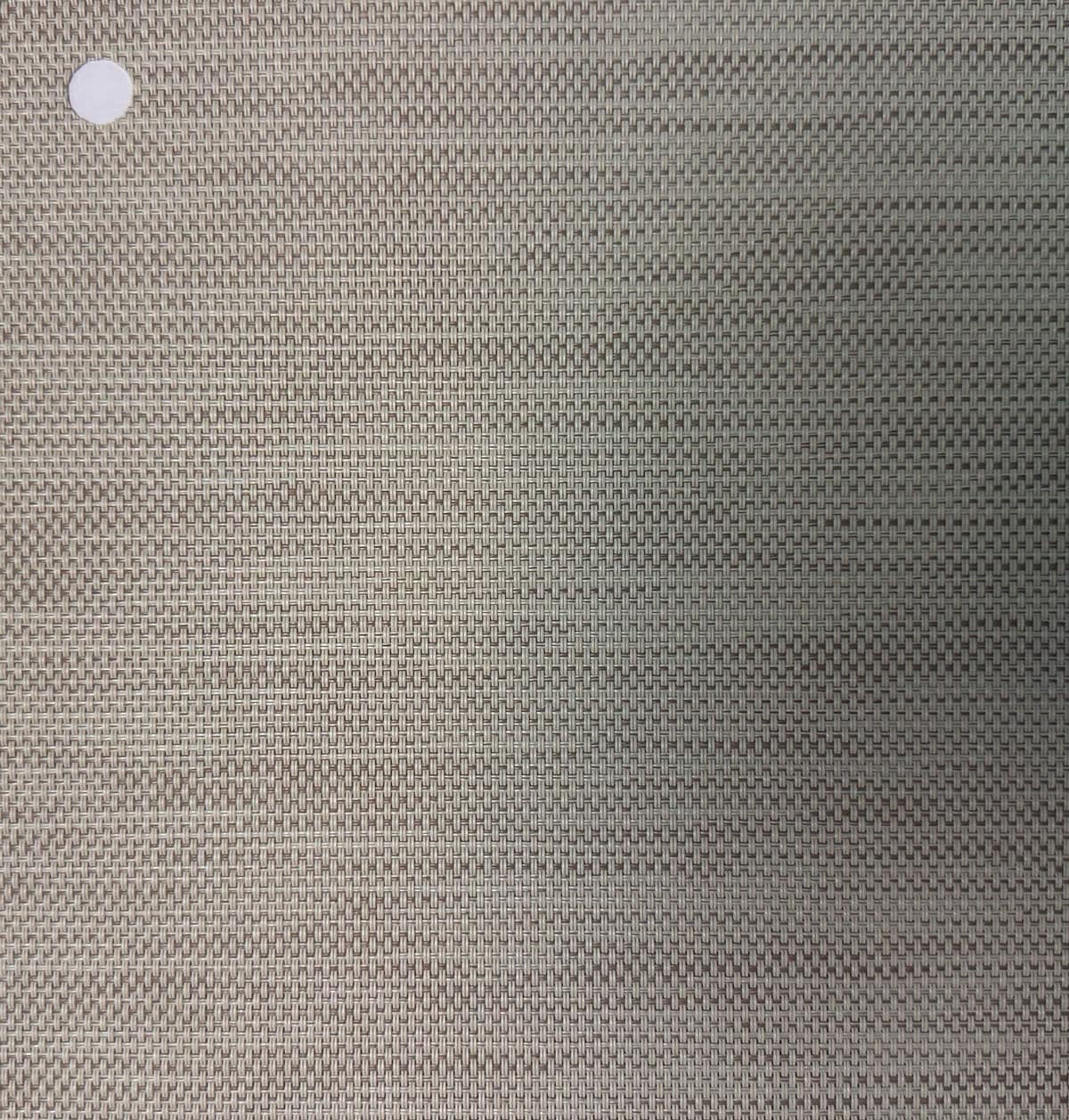

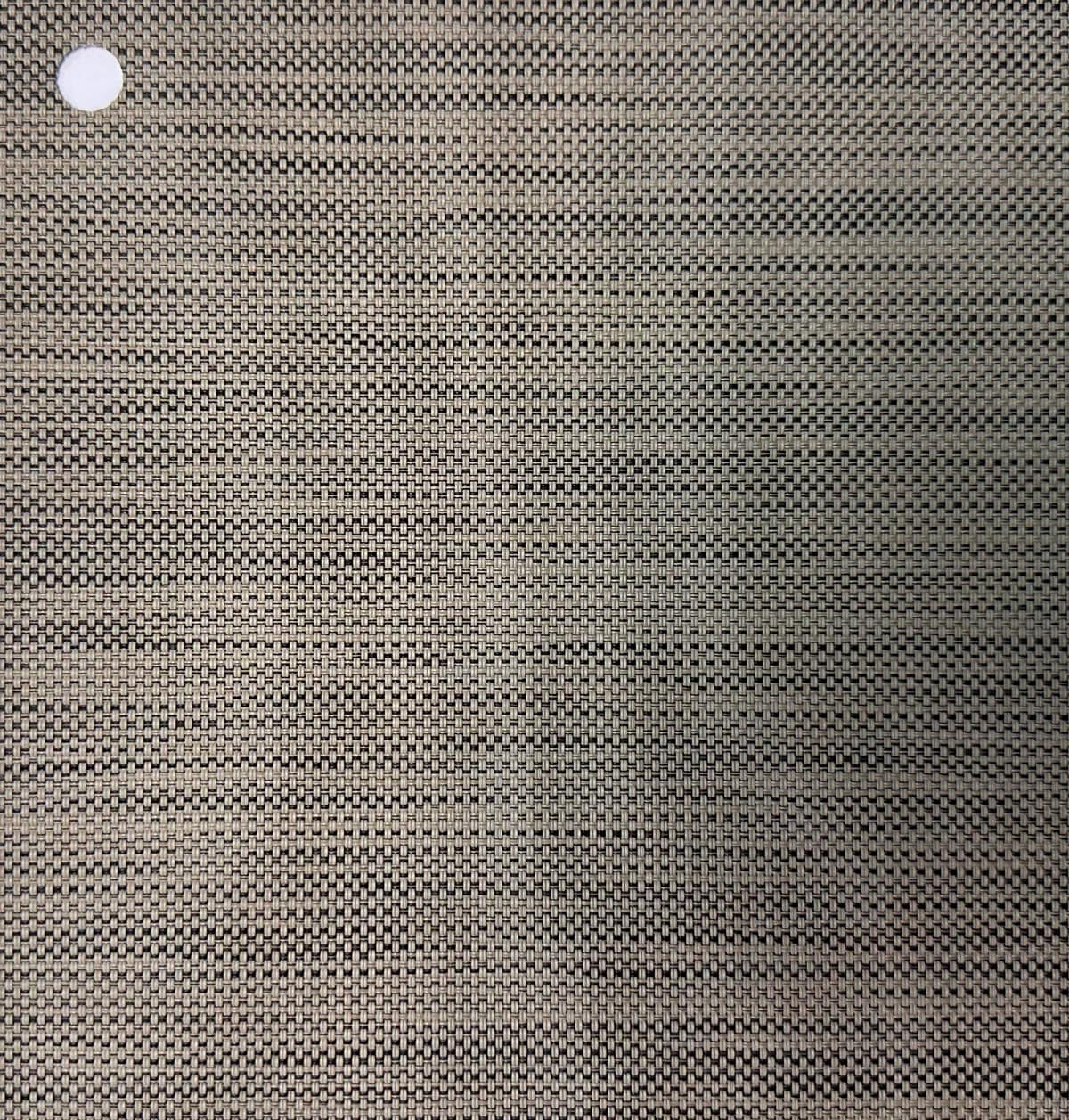

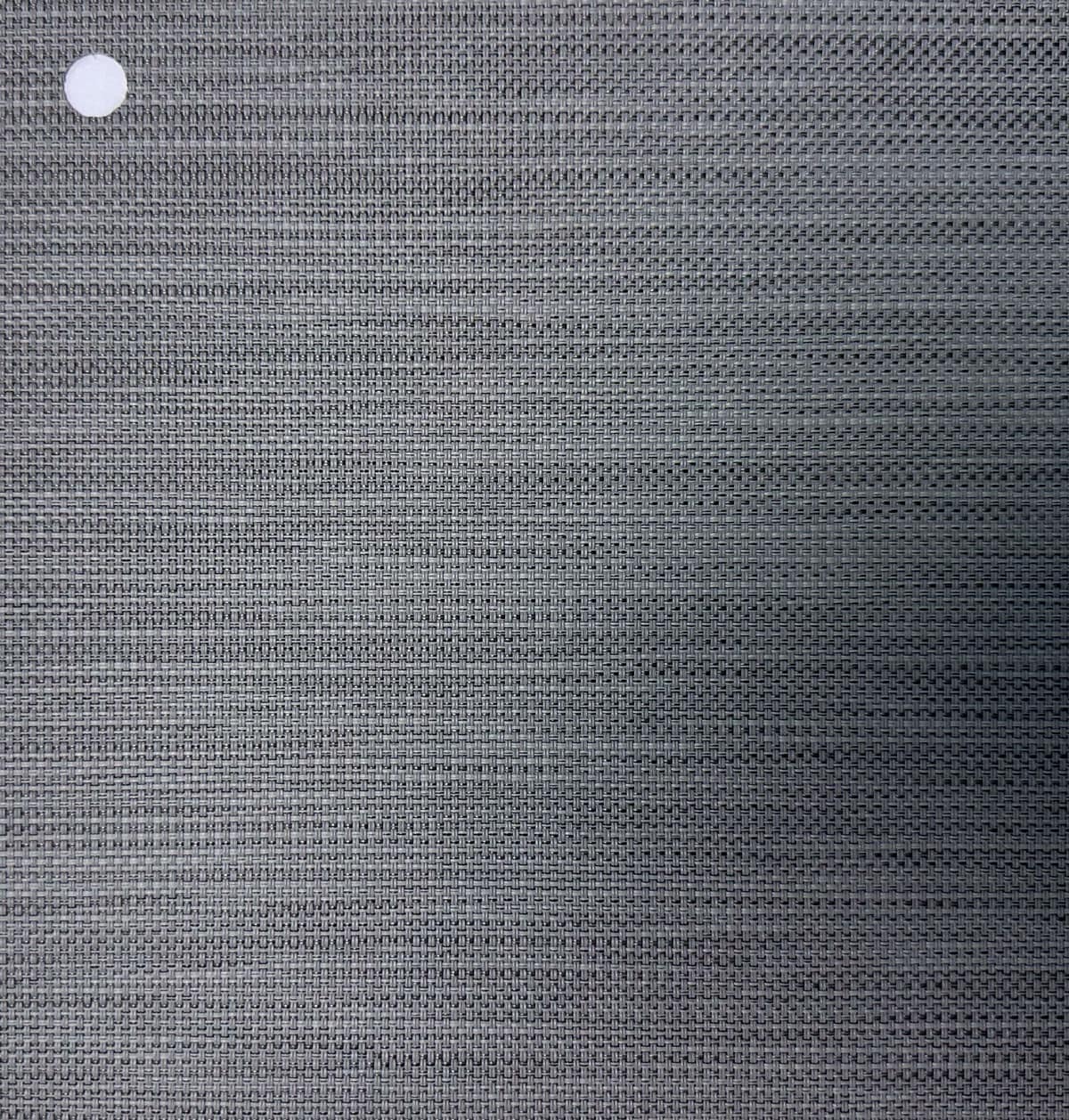

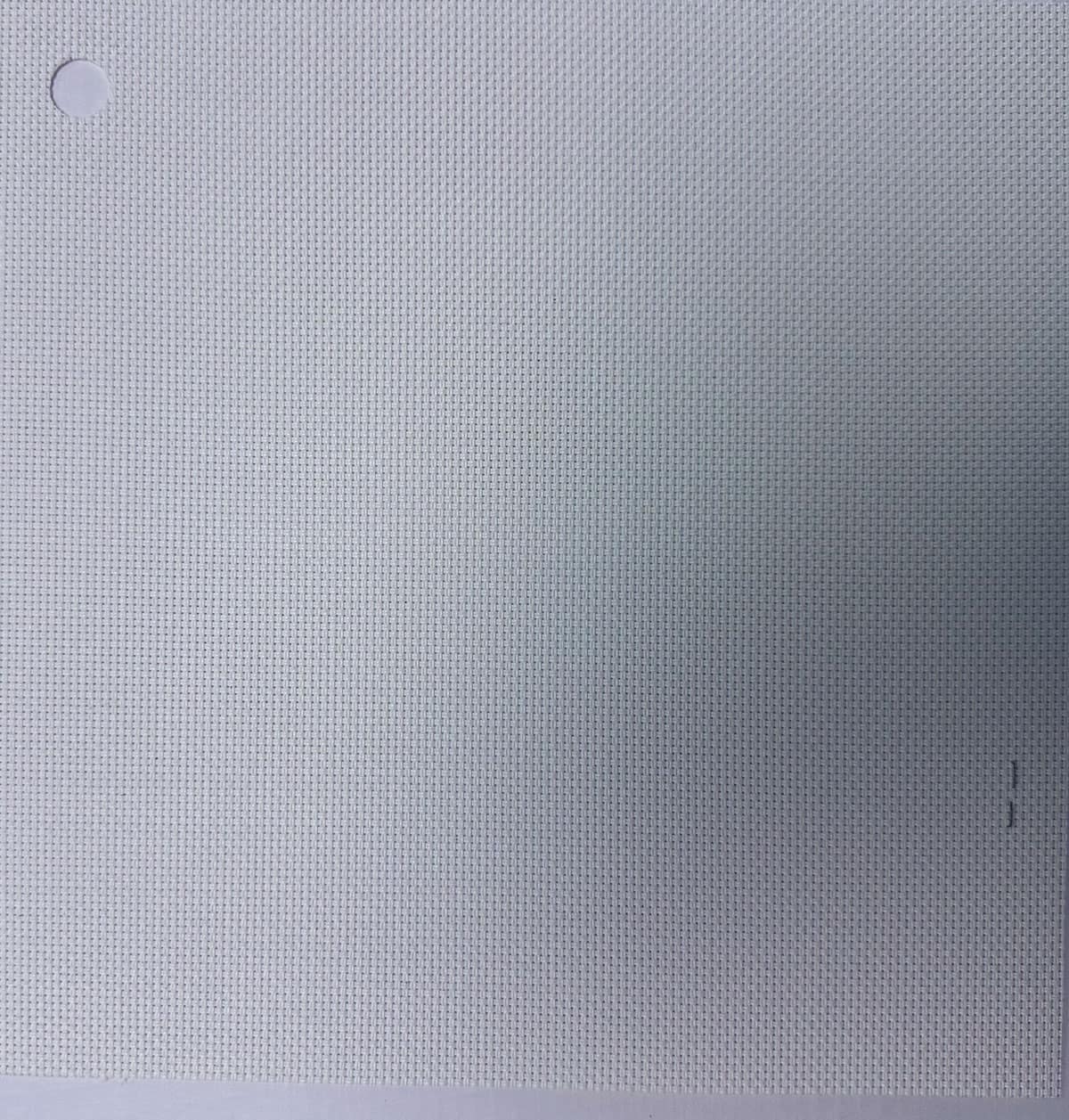

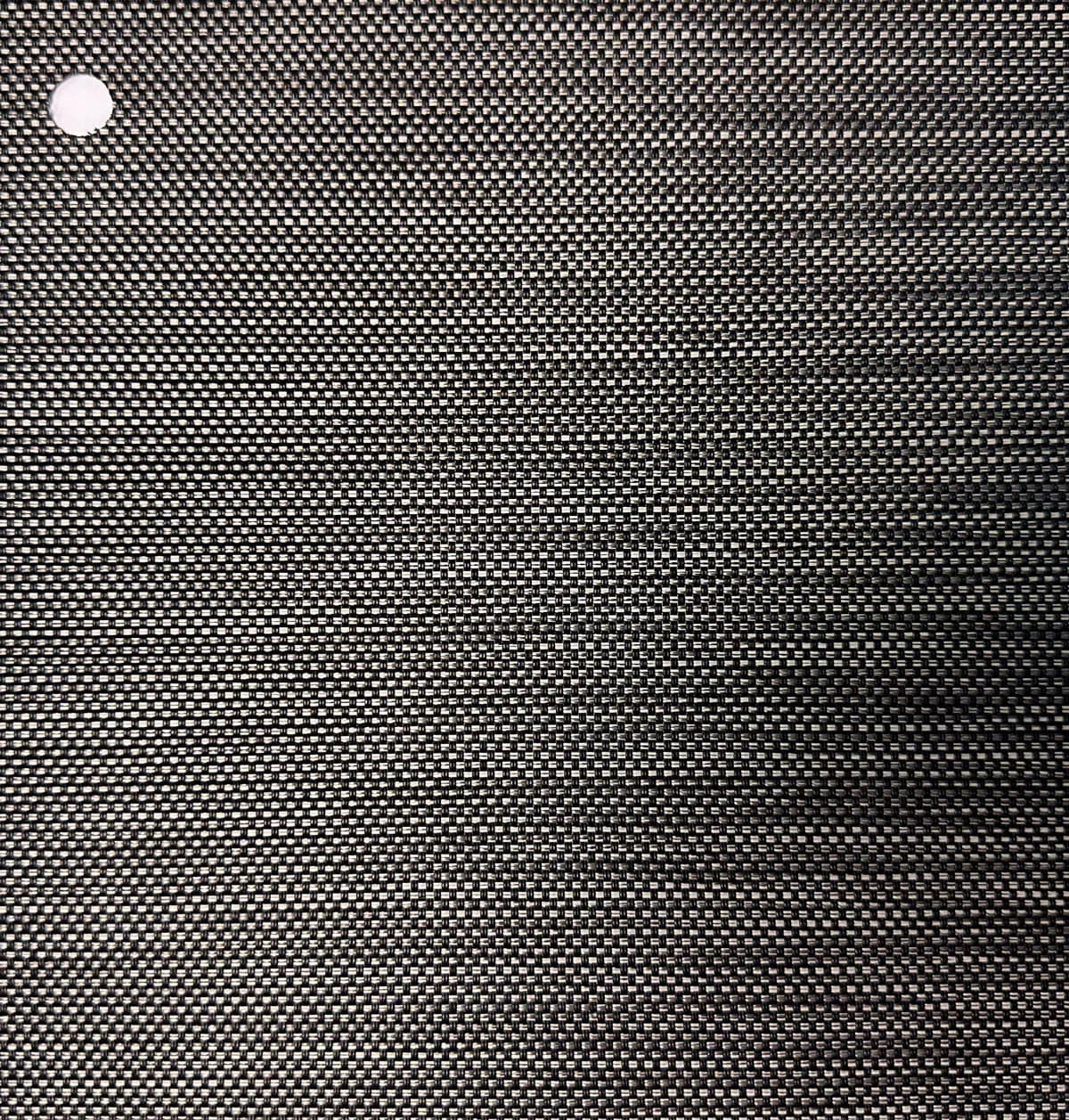

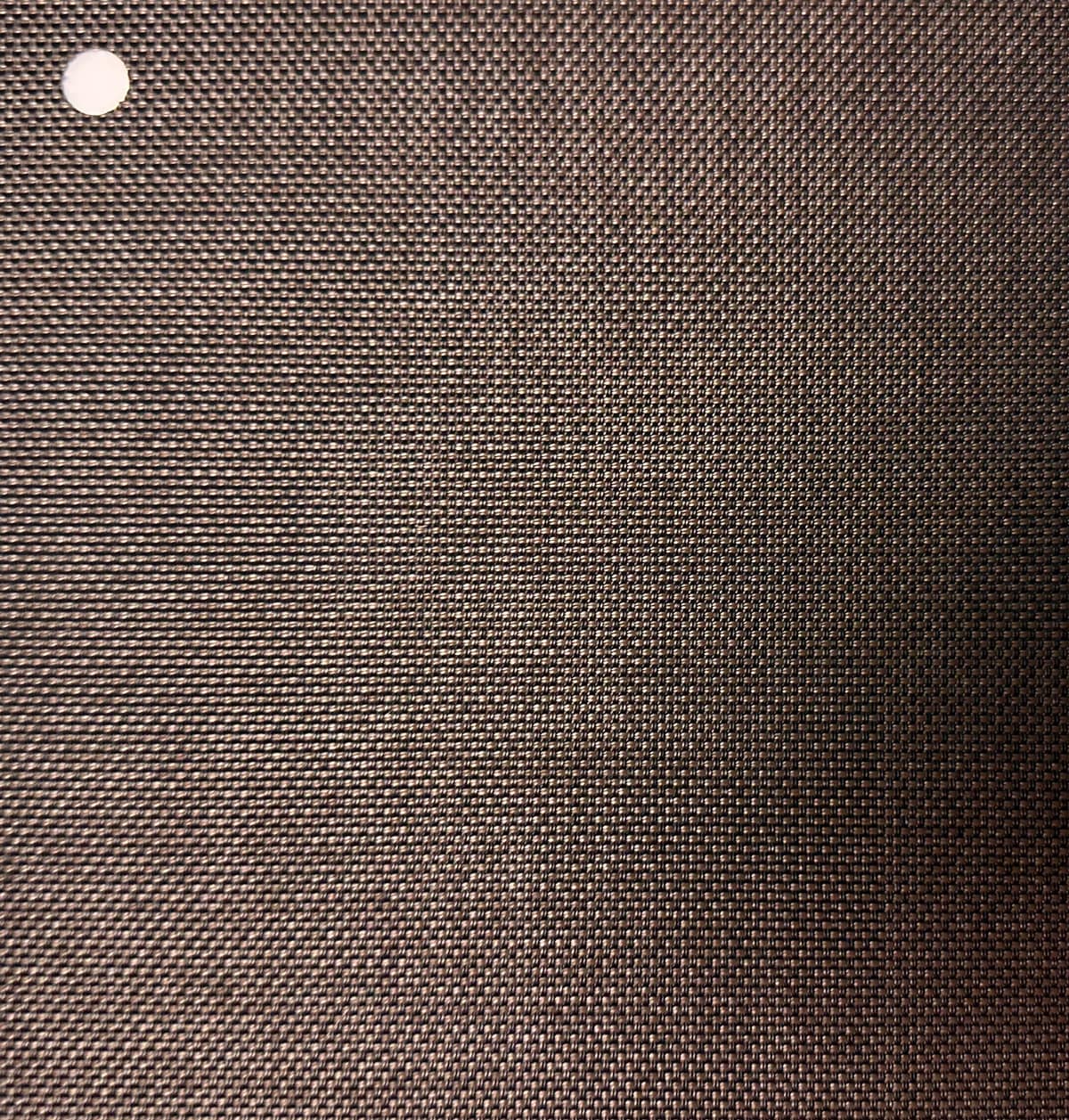

Fabric Collection

Choose from our premium selection of outdoor-rated materials. From dense solar mesh for maximum heat blockage to fine insect screens and clear vinyl enclosures.

Filter by Openness:

Note: On-screen colors may vary from actual fabric. We bring physical swatch books to every design consultation so you can see the exact materials in your home's lighting.

Extruded Aluminum Frames

7 standard powder-coat colors

Custom powder coating (RAL matching) and custom wood grain finishes are also available by request to perfectly match your architecture.

MagnaTrack by Progressive Screens
Authorized MagnaTrack Dealer

GEN 4 motorized — block UV and heat, keep the view

MagnaTrack GEN 4 solar screens roll down from a compact headrail to cut glare and heat gain on west-facing patios, covered decks, and pergolas. Integrated motor operation works with common smart-home setups — fabric retracts when you want the space open.

Key features

  • GEN 4 motorized retractable — patented MagnaTrack self-tensioning system
  • Blocks up to 97% of UV and heat while preserving your outward view
  • Gaposa or Simu motor — Bond Home app, Sidekick remote, or Somfy Smoove included
  • Mate Pro smart remote available — 15-channel Bluetooth control, no hub required
  • Works with Lutron, Control4, Savant, Crestron, Josh.ai, Alexa, Google Home
  • Magnetic side tracks maintain tension while allowing movement under pressure
  • Made in USA · Limited lifetime warranty on aluminum · 15yr fabric warranty

Best for

  • West-facing patios and decks
  • Covered outdoor living rooms
  • Pergolas and lanais
  • Glare control on large openings

Technical Data

System Specifications

PlatformMagnaTrack GEN 4
Housing & roller
  • 6" housing / 4" roller — up to ~20ft wide × 20ft tall
  • 7.5" housing / 5.75" roller — up to ~25ft wide × 20ft tall
  • 8.5" housing / 6.5" roller — up to ~30ft wide × 20ft tall
  • 10" roll-formed housing — up to ~30ft wide (smooth colors only)
Mount types
  • Face Mount (FM)
  • Inside Mount (IUH)
  • Recessed / Pocket
  • Dual Recessed
  • Trapped Openings
Frame colors
  • White TX
  • Ivory TX
  • Beige TX
  • Silver Pearl TX
  • Dark Gray TX
  • Bronze TX
  • Night Sky TX
Fabric options22 fabric lines — see selector above
Pricing TargetCustom quote

Hardware Breakdown

Technical Specifications

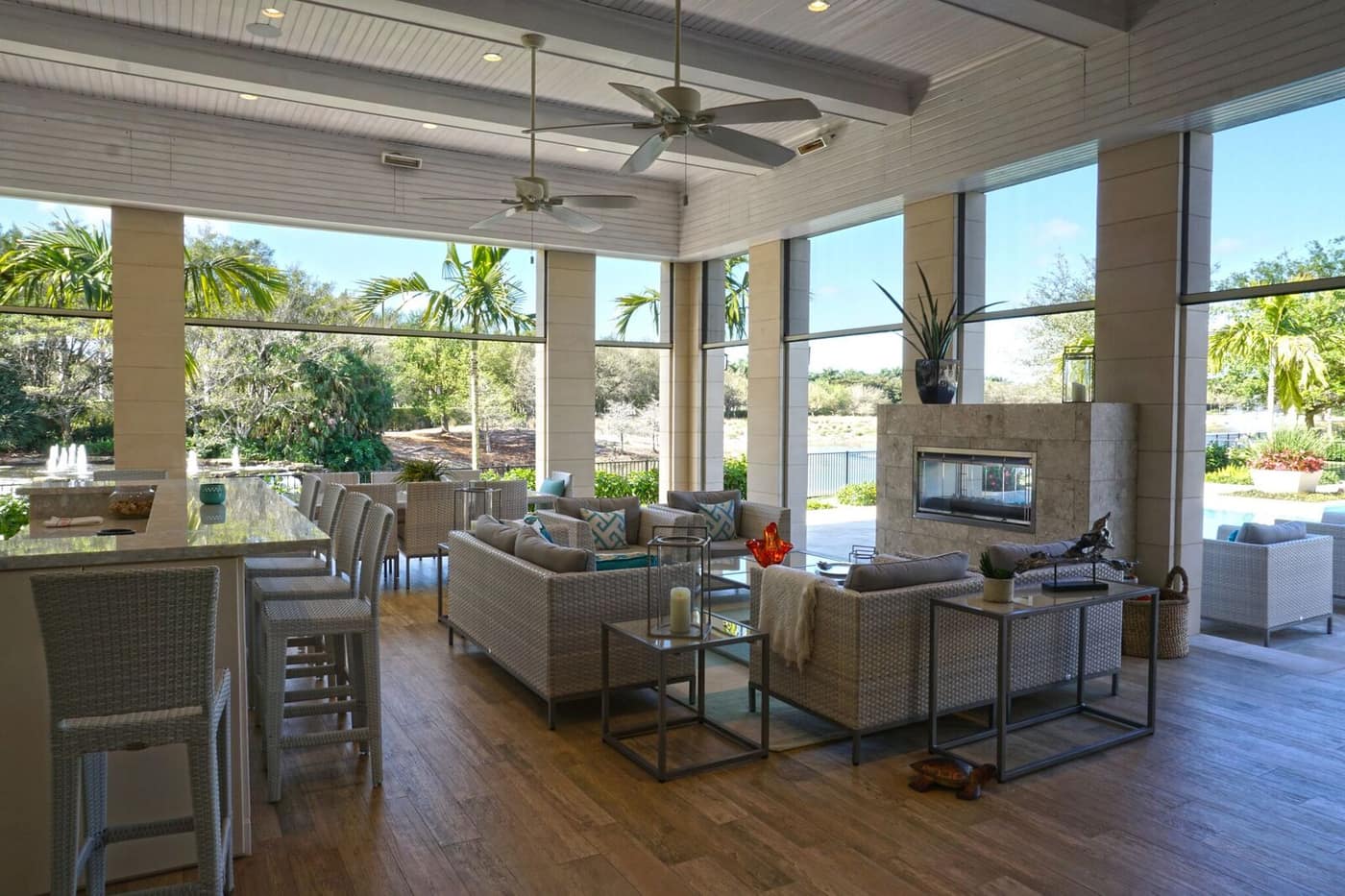

MagnaTrack GEN 4 solar screen headrail and fabric
Field notes
  • GEN 4 headrailCompact motorized headrail with integrated drive — smart-home compatible.
  • Solar meshTextilene Nano openness factors from 50–90% — glare and UV control tuned on site.
  • Mount optionsFace, IUH, recessed, or trapped openings verified before order.
  • Hardware finishPowder-coated aluminum housing and side tracks for long-term corrosion resistance.
  • Wind performanceMagnetic tracks allow movement under pressure. Confirm the selected system's wind rating and operating limits for your opening, fabric and mounting.

Built for the coast and inland Northwest

PNW Weather-Ready

Durability meets Design.

FeltsCustoms specifies treatments for real Pacific Northwest conditions — not just the showroom wall.

  • UV & solar control

    Fabrics and finishes specified for west-facing glare and summer UV — so interiors stay cooler when the PNW sun finally shows up.

  • Heat retention in winter

    Cellular, layered, and insulated options that cut drafts and keep rooms warmer when the long wet season sets in.

  • Moisture-smart materials

    Faux wood, composites, and exterior-rated systems that stand up to humidity, condensation, and temperature swings.

  • Wind & driving rain

    Mounts and hardware chosen for coastal gusts and sideways rain — installed for real weather, not catalog optimism.

Request a Local Site Measure

On-site measure in Vancouver WA, Portland OR, and nearby — we confirm openings, stack, and hardware before anything is ordered.
