Insect Screens

Motorized bug barrier — airflow and view intact

Insect Screens: MagnaTrack manufacturer example
MagnaTrack example
Enlarge

Photos and video labeled “MagnaTrack example” are manufacturer examples, not Felts Customs installations.

Fabric Collection

Choose from our premium selection of outdoor-rated materials. From dense solar mesh for maximum heat blockage to fine insect screens and clear vinyl enclosures.

Filter by Openness:

Note: On-screen colors may vary from actual fabric. We bring physical swatch books to every design consultation so you can see the exact materials in your home's lighting.

Extruded Aluminum Frames

7 standard powder-coat colors

Custom powder coating (RAL matching) and custom wood grain finishes are also available by request to perfectly match your architecture.

MagnaTrack by Progressive Screens
Authorized MagnaTrack Dealer

Motorized bug barrier — airflow and view intact

Same GEN 4 motorized platform as solar, with mesh engineered to keep bugs out without turning your patio into a box. Standard insect mesh or finer No-See-Ums weave for tiny pests — ideal for porches, pergolas, and screened living areas across the metro.

Key features

  • GEN 4 motorized retractable — same patented platform as solar screens

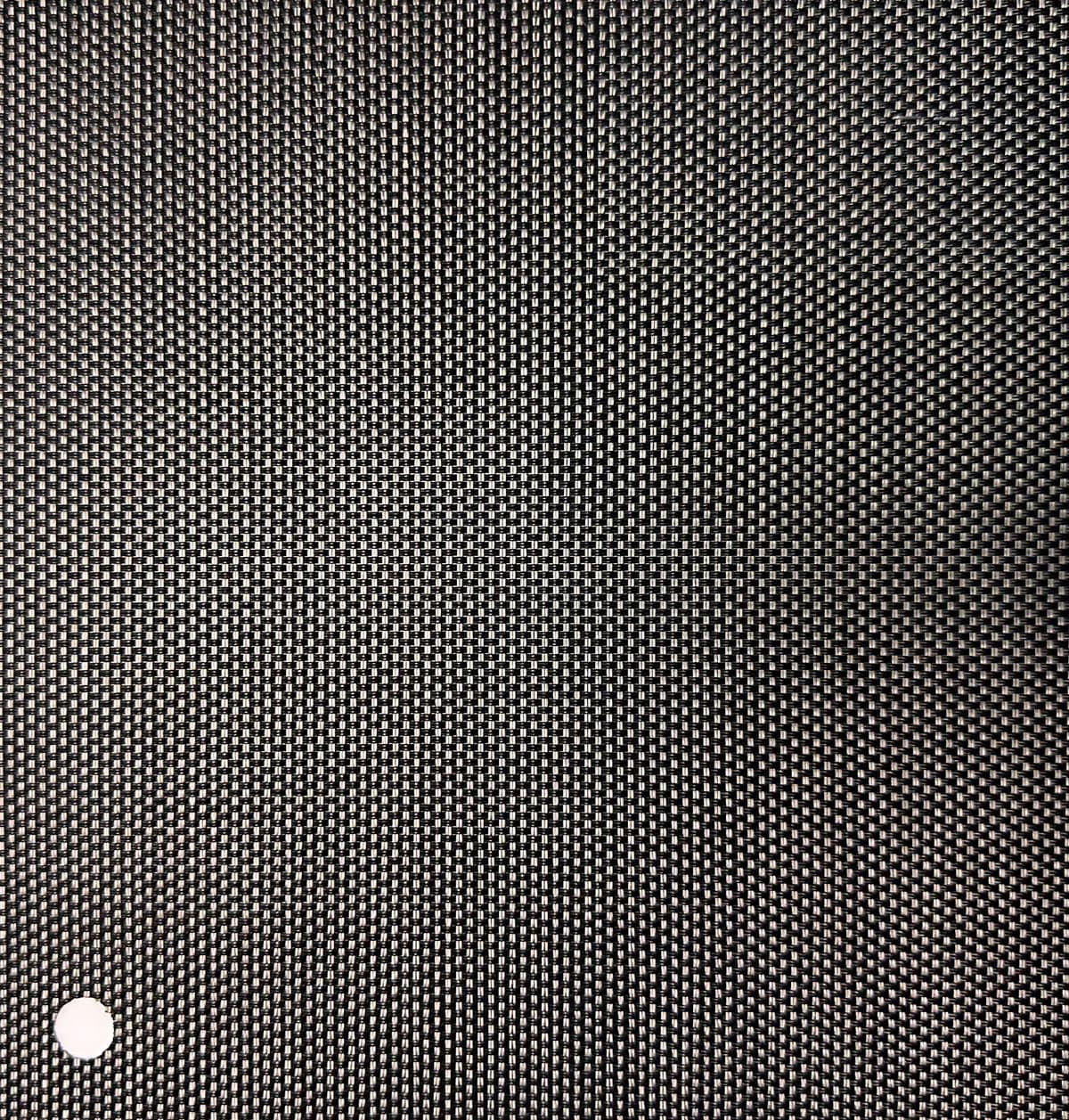

  • Standard 16/14 insect mesh or tight 17/20 No-See-Ums weave for tiny pests
  • Preserves full airflow and outward view when deployed
  • Gaposa or Simu motor — Alexa, Google, Lutron, Control4, Savant, Crestron, Josh.ai
  • Mate Pro smart remote available — control all screens from one device, no hub
  • Magnetic side tracks maintain tension while allowing movement under pressure
  • Made in USA · Limited lifetime warranty on aluminum · 15yr fabric warranty

Best for

  • Patios and porches
  • Pergolas and outdoor kitchens
  • Screened living areas
  • Seasonal bug pressure zones

Technical Data

System Specifications

PlatformMagnaTrack GEN 4
Housing & roller
  • 6" housing / 4" roller — up to ~20ft wide
  • 7.5" housing / 5.75" roller — up to ~25ft wide
  • 8.5" housing / 6.5" roller — up to ~30ft wide
  • 10" roll-formed housing — up to ~30ft wide (smooth colors only)
Mount types
  • Face Mount (FM)
  • Inside Mount (IUH)
  • Recessed / Pocket
  • Dual Recessed
  • Extended Hood
Frame colors
  • White TX
  • Ivory TX
  • Beige TX
  • Silver Pearl TX
  • Dark Gray TX
  • Bronze TX
  • Night Sky TX
Fabric options2 fabric lines — see selector above
Pricing TargetCustom quote

Hardware Breakdown

Technical Specifications

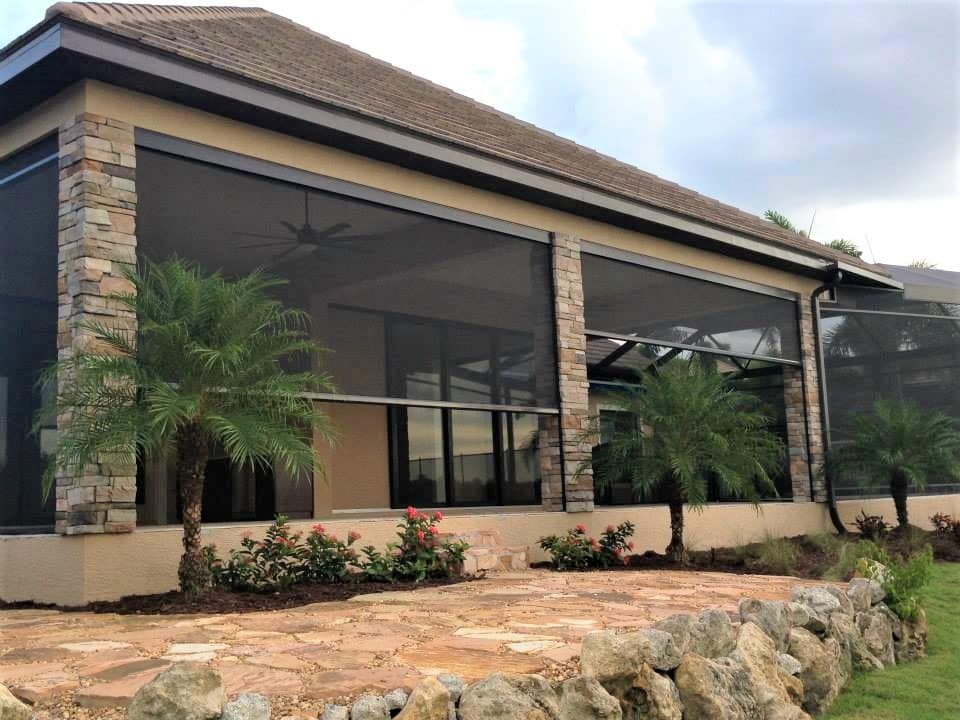

MagnaTrack insect screen mesh detail
Field notes
  • Insect meshStandard insect weave or No-See-Ums for smaller pests — airflow preserved.
  • GEN 4 motorRetractable when open; drops on demand for bug season.
  • Extended hoodOptional extended hood for exposed elevations.
  • Obstacle detectionIntelligent motor automatically stops when an obstacle is detected in the downward path.
  • Wind performanceMagnetic tracks allow movement under pressure. Confirm the selected system's wind rating and operating limits for your opening, fabric and mounting.

Built for the coast and inland Northwest

PNW Weather-Ready

Durability meets Design.

FeltsCustoms specifies treatments for real Pacific Northwest conditions — not just the showroom wall.

  • UV & solar control

    Fabrics and finishes specified for west-facing glare and summer UV — so interiors stay cooler when the PNW sun finally shows up.

  • Heat retention in winter

    Cellular, layered, and insulated options that cut drafts and keep rooms warmer when the long wet season sets in.

  • Moisture-smart materials

    Faux wood, composites, and exterior-rated systems that stand up to humidity, condensation, and temperature swings.

  • Wind & driving rain

    Mounts and hardware chosen for coastal gusts and sideways rain — installed for real weather, not catalog optimism.

Request a Local Site Measure

On-site measure in Vancouver WA, Portland OR, and nearby — we confirm openings, stack, and hardware before anything is ordered.
